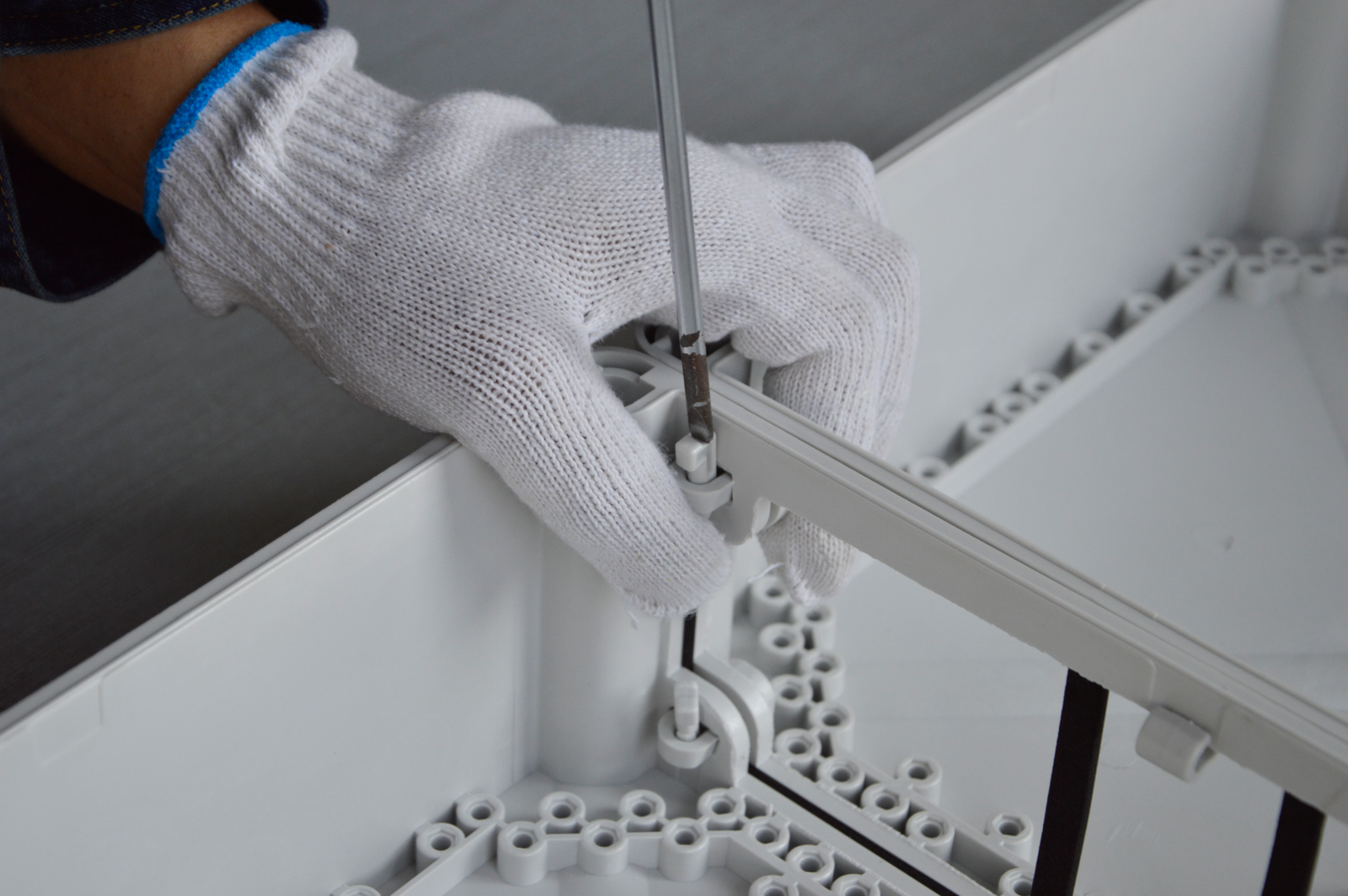

Optional later: add 2-4 small gallery images under the main image for DIN rail detail, back plate detail, bracket detail, or mounting view.
This page is for matching accessories and bracket solutions that support PC distribution box installation, internal mounting, and more complete project supply requirements.
It is suitable for customers who need not only the enclosure body, but also matching installation parts, internal accessories, or metal bracket support.

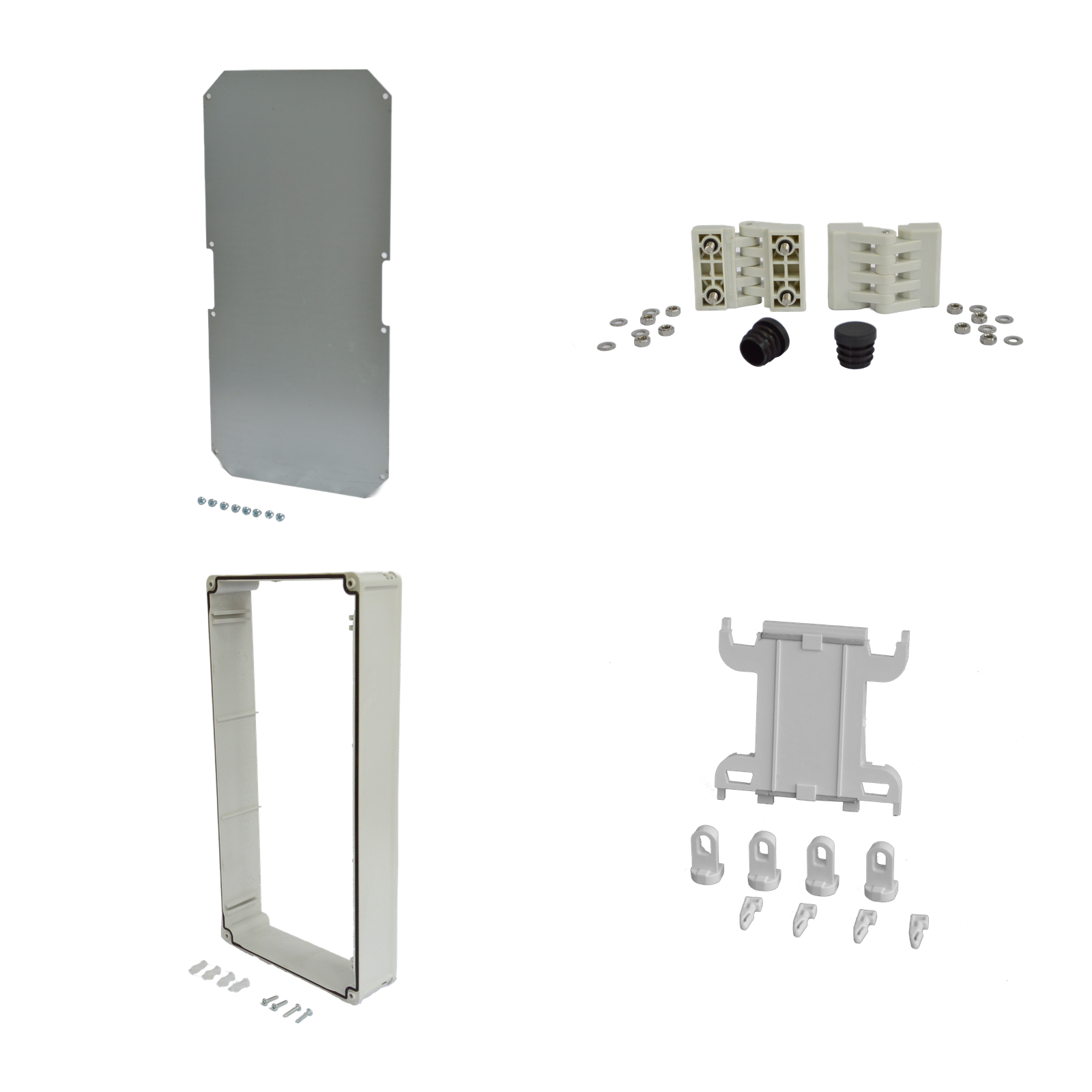

Accessories and brackets help customers complete a more practical and integrated enclosure solution. This page can cover DIN rails, back plates, internal mounting parts, installation accessories, and metal brackets.
This accessory category is suitable for projects where enclosure installation needs more than the box body only. It helps customers improve matching efficiency and reduce separate sourcing work by supporting a more complete installation solution.

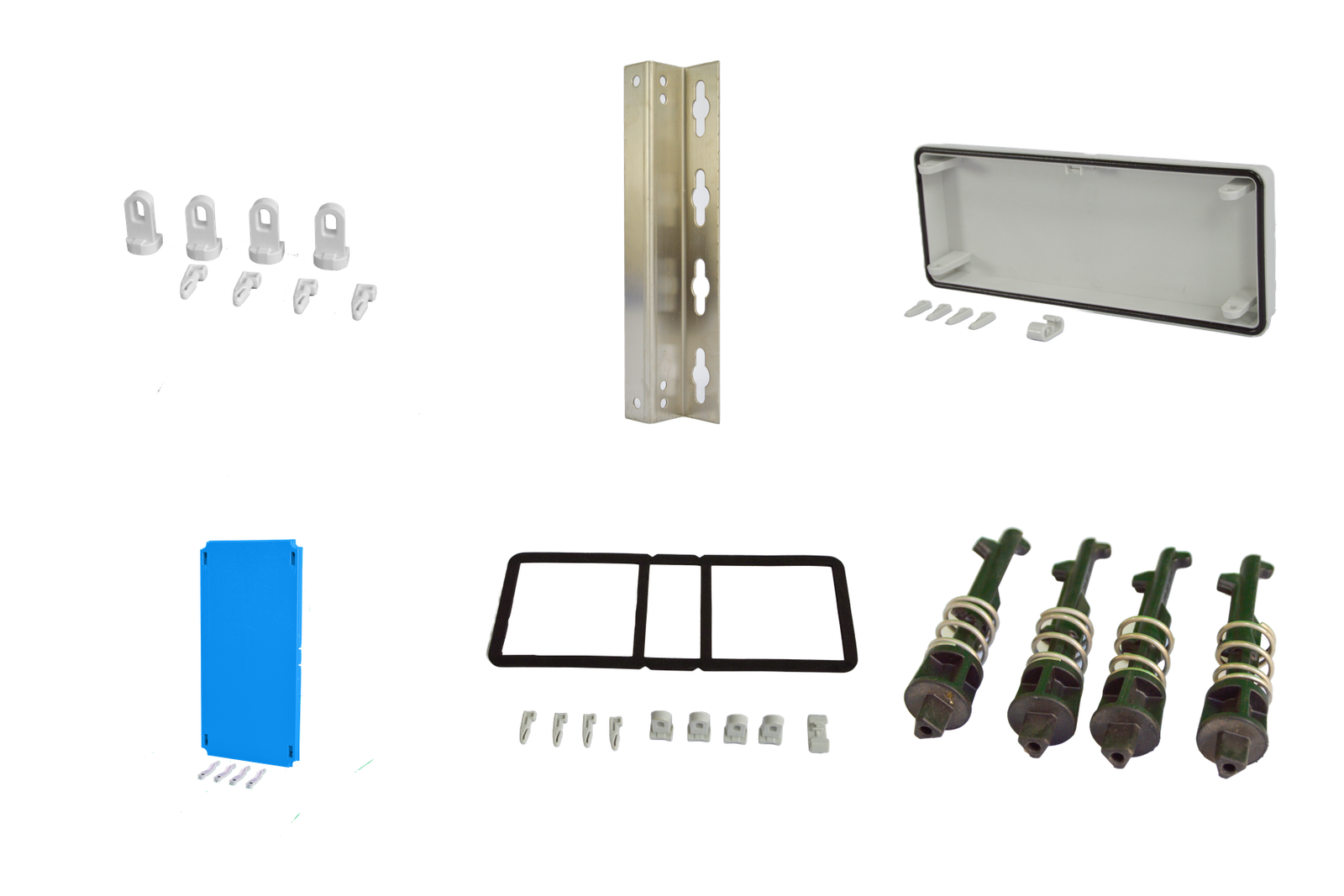

Reference accessory models from the current catalog, including back plates, mounting base plates, extension frames, flange parts, locks, sealing parts, mounting parts, and opening components.
| Category | Model | Size | Unit | Description |
|---|---|---|---|---|
| Back Plate | HN LB 01 | 125 × 285 mm | pcs | Suitable for HN1 series enclosures; used for guide rail, buttons, switches, meters and related internal installation parts. |
| Back Plate | HN LB 02 | 285 × 285 mm | pcs | Suitable for HN2 series enclosures; used for guide rail, buttons, switches, meters and related internal installation parts. |
| Back Plate | HN LB 03 | 285 × 435 mm | pcs | Suitable for HN3 series enclosures; used for guide rail, buttons, switches, meters and related internal installation parts. |
| Back Plate | HN LB 04 | 285 × 585 mm | pcs | Suitable for HN4 series enclosures; used for guide rail, buttons, switches, meters and related internal installation parts. |
| Mounting Base Plate | HN DB 01 | 115 × 259 mm | pcs | Suitable for HN1 series enclosures; can support guide rail, switch, contactor, relay, meter and terminal installation. |
| Mounting Base Plate | HN DB 02 | 265 × 265 mm | pcs | Suitable for HN2 series enclosures; can support guide rail, switch, contactor, relay, meter and terminal installation. |
| Mounting Base Plate | HN DB 03 | 265 × 416 mm | pcs | Suitable for HN3 series enclosures; can support guide rail, switch, contactor, relay, meter and terminal installation. |
| Mounting Base Plate | HN DB 04 | 265 × 565 mm | pcs | Suitable for HN4 series enclosures; can support guide rail, switch, contactor, relay, meter and terminal installation. |
| Mounting Base Plate | HN DB 08 | 565 × 565 mm | pcs | Suitable for HN8 series enclosures; can support guide rail, switch, contactor, relay, meter and terminal installation. |
| Lock | HN J0010 | / | set | Lock set accessory with flexible operation for convenient repair, replacement and upgrading. |
| Extension Frame | HN JS 04 | 300 × 600 × 85 mm | pcs | Suitable for HN4 series enclosures; increases mounting depth to 85 mm and supports larger internal installation space. |
| Extension Frame | HN JS 08 | 600 × 600 × 85 mm | pcs | Suitable for HN8 series enclosures; increases mounting depth to 85 mm and supports larger internal installation space. |
| Sloped Rain Cover | HN CZ 10 | 300 × 150 × 170 mm | pcs | Applicable to enclosure top use; suitable for industrial sockets, buttons, indicator lights and related parts. |
| Flange | HN FL 01 | 270 × 110 mm | pcs | Transparent flange part; can be used with multiple enclosure models for cable and line-entry related installation. |
| Sealed Cable Gland Head | HN FP 72 | 270 × 110 mm | pcs | Integrated dual cable sealing structure; suitable for cable diameters from 30 to 72 mm. |
| Wall-Mount Part | HN BG 01 | / | set | Wall-mount installation accessory suitable for single enclosure use. |
| Pole-Mount Bracket | HN BC 01L | / | set | Suitable for multi-enclosure combination installation; bracket length can be defined according to support profile size. |
| Sealing Part | HN MF J1 | / | set | Suitable for 150 mm and 300 mm cabinet widths; used for enclosure assembly and multi-box connection sealing. |
| Opening Part | HN QB 01 | / | set | Manual opening part; can be opened and closed by hand without additional tools. |
| Opening Part | HN QB 02 | / | set | Tool-operated opening part; supports opening and closing with a screwdriver or similar tool. |
| Opening Part | HN QB 03 | / | set | Triangle opening part; suitable for opening and closing with a triangle handle or matching tool. |
| Middle Connector | HN WT1 | / | set | Used for connecting one 300 × 300 mm enclosure with two 150 × 300 mm enclosure structures. |
This section shows the core value of the accessories and brackets category.
Helps customers reduce separate sourcing work by providing more complete matching support.
Supports enclosure projects where internal mounting or bracket installation is required.
Can be matched according to different enclosure structures and project requirements.
This section helps introduce the main types of accessories and bracket support available.
Suitable for internal mounting and practical enclosure configuration support.
Useful for internal installation support where mounting boards or internal fixing solutions are needed.
Suitable for projects requiring stronger mounting support or integrated installation solutions.
Accessories and brackets are suitable for projects that require a more complete enclosure installation solution.
Suitable for projects where inside structure support and mounting parts are needed.
Useful for enclosure installation where practical fitting parts improve project efficiency.
Suitable for applications where additional bracket support is required for the enclosure system.
Contact us for DIN rail, back plate, internal accessory, metal bracket, or integrated matching support for your B2B project.
